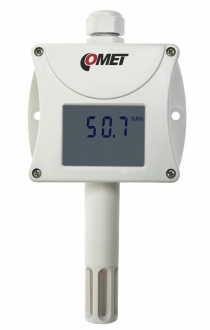

Tekniska specifikationer

Mätvärde

Relativ luftfuktighet
Mätområde 0 till 100%RH
Noggrannhet ±2,5%RH från 5 till 95%RH vid 23°C
Drifttemperatur -30 till +80°C
Temperaturområde för LCD display läsbar upp till +70°C, det är rekommenderat att släcka LCD:n vid temperatur över +70°C
Temperaturkompensation av luftfuktighetssensorn i hela temperaturområdet
Utsignal 4-20mA tvåtråds strömloop
Konfiguration av mätområde Med programvara Tsensor och en PC
Sensorskydd 0,025mm - filter i rostfritt stål
Kapslingsklass IP65 elektronik, IP40 givare
Spänningsmatning 9-30Vdc
Dimensioner 88,5 x 170 x 39,5 mm (B x H x D), sondlängd 75 mm
Vikt ca 150g
Garanti 3 år

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX
