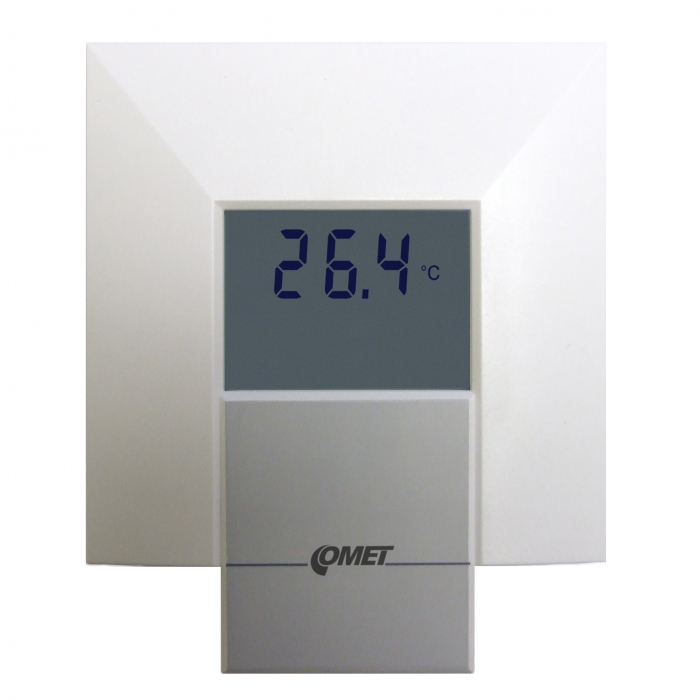

Temperaturtransmitter inomhus med RS232 utgang
Temperaturtransmitter för mätning och övervakning av omgivningstemperatur inomhus.
Temperaturtransmitter i kapsling för inomhusbruk anpassad för montering på väggdosor för strömbrytare och uttag. Välj att visa temperatur i Celsius eller Fahrenheit. Stor tvåraders display som kan stängas av vid behov.
-
Art nrT0318
-
Garanti3 År
Tekniska specifikationer
Mätvärde
Temperatur
Noggrannhet för temperaturmätning
±0,5°C
Enheter för temperatur
Celsius, Fahrenheit
Temperaturområde
-10 till +50°C
Kommunikationsprotokoll
ModBus RTU eller Advantech ADAM
Kommunikationshastighet
110 till 115200 Bd
Kapslingsklass
IP20
Spänningsmatning
9-30Vdc, förbrukning ca 0,5W
Dimensioner
88 x 106 x 33 mm (B x H x D)
Material kapsling
ABS
Färg
Vit
Vikt
ca 150g
Garanti
3 år
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
